D2SV Relation Widget

D2SV Relation Widget tile plugin will help the developer in solving the following scenarios

Define a relation widget type
Define a relation widget type parameter
Define a relation widget type in the landing page
Define a shortcut tile with behavior to access the relation widget type parameter.

Instruction to try out the sample

Build the plugin using npm run build from SDK workspace root.
Copy D2SV-Relation-Widget-1.0.0.jar from 'dist' folder in workspace root and paste it inside WEB-INF/lib folder of a deployed D2 Smartview application.
The same plugin jar file has to be placed in WEB-INF/classes/plugins directory of deployed D2-Config application.
Edit WEB-INF/classes/D2-Config.properties and add an entry like plugin_<sequence>=plugins/D2SV-Relation-Widget-1.0.0.jar where <sequence> is the next natural number following the existing entries of the same pattern in the file.
Restart application server on which D2 Smartview is deployed.

After restart -

Login into D2-Config and navigate to Widget view -> widget from menubar.
Create a new widget configuration and let's name it Relation tile and select value CustomRelationsWidget for the dropdown Widget type.
Fill in other fields like Applications, label etc. as desired.
Take a note of the value in Relation Widget param field and select Customize default widget columns to see the list of default columns.
For any widget configuration, if additional columns are added to the Customize default widget columns field in D2-Config, the resulting default columns list will include both the columns defined in the plugin code ( _col_relations_widgets ) and the columns added via D2-Config. This behavior applies only to the widget being configured. After saving the widget configuration, please clear the preference to see the effect of default columns.
From the toolbar, click Matrix to go to D2-config matrix and enable the widget configuration, you just created, against appropriate contexts.
Navigate to Widget view -> Smart View Landing Page from menu bar and then download your applicable landing page configuration xml file.

tip

If a pre-created Smartview landing page configuration does not exist, then refer to D2 Administration Guide documentation to create the same and learn basics of landing page structure file.

Edit your landing page configuration file and place the following xml anywhere right under <context> tag
```
  <widget-container>
      <widget type="CustomRelationsWidget" name="Relation tile"/>
  </widget-container>
```
tip
If you've used a different name while creating the widget configuration, use that name as the value for name attribute.
Save the landing structure xml file and upload it to D2-Config under the same landing page configuration from where we downloaded it before.
Save the configuration change in D2-Config and click Tools -> Refresh cache from menubar.

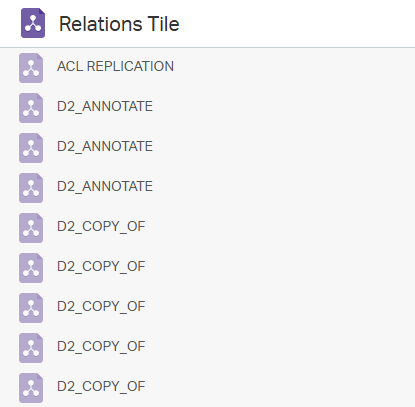

Reloading the D2 Smartview at this point should show an additional shortcut in the landing page, similar to following
Click on the widget to see the list of Relations in the current repository.
Selecting any relations, shows 'Locate' and 'Delete' menu based on the logged-in user's permissions.

As result of deploying this plugin, it will introduce a new widget type in the D2-Config widget types. And the other part of the plugin binds this new widget type to a new shortcut tile in D2-Smartview landing page.

Source code structure

D2SV-Custom-Widget-Type
|~~~~~~~~~~~~~~~~~~~~~~~~~~~~
|   pom.xml
|
+---src
|   *---main
|   |    +---java
|   |    |   \---com
|   |    |       +---emc
|   |    |       |       D2PluginVersion.java
|   |    |       |
|   |    |       \---opentext
|   |    |           \---d2
|   |    |               +---rest
|   |    |               |   \---context
|   |    |               |       \---jc
|   |    |               |               PluginRestConfig_CustomRelationsWidget.java
|   |    |               |
|   |    |               \---smartview
|   |    |                   \---customrelationswidget
|   |    |                       |   CustomRelationsWidgetPlugin.java
|   |    |                       |
|   |    |                       +---api
|   |    |                       |       CustomRelationsWidgetVersion.java
|   |    |                       |
|   |    |                       \---rest
|   |    |                           |   package-info.java
|   |    |                           |
|   |    |                           +---controller
|   |    |                           |       CustomRelationsWidgetController.java
|   |    |                           |
|   |    |                           +---dfc
|   |    |                           |   |   CustomRelationsWidgetManager.java
|   |    |                           |   |
|   |    |                           |   \---impl
|   |    |                           |           CustomRelationsWidgetManagerImpl.java
|   |    |                           |
|   |    |                           +---model
|   |    |                           |       RelationsInputModel.java
|   |    |                           |       RelationsOutputModel.java
|   |    |                           |
|   |    |                           \---view
|   |    |                                   RelationsFeedView.java
|   |    |                                   RelationsView.java
|   |    |
|   |    +---resources
|   |    |   |   customrelationswidget-version.properties
|   |    |   |   D2Plugin.properties
|   |    |   |
|   |    |   \---com
|   |    |       \---emc
|   |    |       |   \---d2
|   |    |       |       \---api
|   |    |       |           \---preferences
|   |    |       |                    D2cPreferences.properties
|   |    |       |                    D2cPreferencesColumnType.properties
|   |    |   +---smartview
|   |    |   |       SmartView.properties
|   |    |   |
|   |    |   \---strings
|   |    |       +---actions
|   |    |       |   \---config
|   |    |       |       \---modules
|   |    |       |           \---widge
|   |    |       |               \---WidgetDialog
|   |    |       |                       WidgetDialog_en.properties
|   |    |       |
|   |    |       \---bundles
|   |    |               DfAttributeBundle_en.properties
|   |    |       \---config
|   |    |               U4Landing.properties
|   |    |               WidgetColumnslist.properties
|   |    |               WidgetSubtype.properties
|   |    |               WidgetSubtypelist.properties
|   |    |
|   |    \---smartview
|   |        |   .stylelintrc.yml
|   |        |   .eslintrc-html.yml
|   |        |   .eslintrc.yml
|   |        |   .npmrc
|   |        |   config-editor.js
|   |        |   customrelationswidget.setup.js
|   |        |   Gruntfile.js
|   |        |   package.json
|   |        |   server.conf.js
|   |        |
|   |        +---src
|   |        |   |   component.js
|   |        |   |   config-build.js
|   |        |   |   customrelationswidget-extensions.json
|   |        |   |   customrelationswidget-init.js
|   |        |   |   Gruntfile.js
|   |        |   |
|   |        |   +---bundles
|   |        |   |       customrelationswidget-bundle.js
|   |        |   |
|   |        |   +---models
|   |        |   |       relations.widget.collection.js
|   |        |   |       relations.widget.model.js
|   |        |   |
|   |        |   +---extensions
|   |        |   |       controls.table.cell.factory.js
|   |        |   |       relation.perspectives.js
|   |        |   |       relation.tiles.js
|   |        |   |
|   |        |   +---table
|   |        |   |
|   |        |   |   \---cell
|   |        |   |       |
|   |        |   |       \---custom
|   |        |   |          |
|   |        |   |          \---impl
|   |        |   |               custom.cell.css
|   |        |   |               custom.cell.hbs
|   |        |   |
|   |        |   +---test
|   |        |   |       extensions.spec.js
|   |        |   |
|   |        |   +---utils
|   |        |   |   |   constants.js
|   |        |   |   |   icons.js
|   |        |   |   |   startup.js
|   |        |   |   |
|   |        |   |   \---contexts
|   |        |   |       |
|   |        |   |       \---factories
|   |        |   |               relations.widget.collection.factory.js
|   |        |   |
|   |        |   |   \---impl
|   |        |   |       |   icon.css
|   |        |   |       |
|   |        |   |       \---images
|   |        |   |               tile_relation.svg
|   |        |   |
|   |        |   |   \---perspectives
|   |        |   |       |   relations.widget.perspective.json
|   |        |   |       |
|   |        |   |   \---theme
|   |        |   |       |   action.icons.js
|   |        |   |       |
|   |        |   |       \---action_icons
|   |        |   |               action_sample_icon.svg
|   |        |   |
|   |        |   \---widgets
|   |        |       \---relations.widget
|   |        |               relation.widget.commands.js
|   |        |               relation.widget.manifest.json
|   |        |               relation.widget.view.js
|   |        |               |
|   |        |               \---impl
|   |        |                    \---nls
|   |        |                          \---root
|   |        |                              lang.js
|   |        |                              relations.widget.manifest.js
|   |        |                          |
|   |        |                          lang.js
|   |        |                          relations.widget.manifest.js
|   |        |       \---relations.widget.perspective
|   |        |               relation.widget.perspective.manifest.json
|   |        |               relation.widget.perspective.view.js
|   |        |               |
|   |        |               \---impl
|   |        |                    \---nls
|   |        |                          \---root
|   |        |                              lang.js
|   |        |                              relations.widget.perspective.manifest.js
|   |        |                          |
|   |        |                          lang.js
|   |        |                          relations.widget.perspective.css
|   |        |
|   |        \---test
|   |                Gruntfile.js
|   |                karma.conf.js
|   |
|
\---target

Files and their purpose

Following are the list of function oriented source files and their purpose. Other source files present within the plugin are part of common infrastructure code and explained in Understanding D2SV plugin project.

REST Controller

src/main/java/com/opentext/d2/rest/context/jc/PluginRestConfig_CustomRelationsWidget.java - Declares Spring Bean RelationsManager through RelationsManagerImpl.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/controller/RelationsController.java - Defines a REST controller with one endpoint to list all the relations from Documentum.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/dfc/RelationsManager.java - Declares the data manager interface used by above REST controllers to get/set the data they deal with.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/dfc/impl/RelationsManagerImpl.java - Data manager that interacts with Documentum through DQL and exchanges data as per RelationsManager interface.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/model/RelationsInputModel.java - Serializable POJO that represents attributes of relation while editing.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/model/RelationsOutputModel.java - Serializable POJO that represents attributes of relation.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/view/RelationsFeedView.java - Spring view used to wrap and serialize a list of relation data. Uses RelationsView in turn to serialize each individual relation.
src/main/java/com/opentext/d2/smartview/customrelationswidget/rest/view/RelationsView.java - Spring view used to wrap and serialize a list of relation data.

Tile on the landing page

src/main/smartview/src/bundles/customrelationswidget-bundle.js - A portion of this file refers to the RequireJS modules that implement the landing page tile. These references are only used for RequireJS modules that are otherwise not referenced statically from any other RequireJS module.

  define([
    'customrelationswidget/utils/theme/action.icons',
    'customrelationswidget/utils/startup',
    'customrelationswidget/utils/icons',
    'customrelationswidget/extensions/controls.table.cell.factory',
    'customrelationswidget/extensions/relations.tiles',
    'customrelationswidget/extensions/relations.perspectives',
    'customrelationswidget/widgets/relations.widget/relations.widget.view',
    'customrelationswidget/widgets/relations.widget.perspective/relations.widget.perspective.view',
    'customrelationswidget/utils/contexts/factories/relations.widget.collection.factory',
    'customrelationswidget/table/cell/custom/custom.cell.view',
    ], {});

src/main/smartview/src/utils/theme/action.icons.js - Defines the default icon for the widgets
src/main/smartview/src/utils/startup.js - Runs as part of D2 Smartview client-side startup flow. This flow is executed everytime end users reload the D2 Smartview application in their internet browser.
src/main/smartview/src/utils/icons.js - Defines the icon to represent a relation by means of extension.
src/main/smartview/src/extensions/controls.table.cell.factory.js - Defines the external cell factory.
src/main/smartview/src/extensions/relations.tiles.js - Declares a new widget type handler for the landing page tiles by means of extension.
src/main/smartview/srcwidgets/relations.widget/relations.widget.view.js - A MarionetteJS view that implements the UI and function for the widget. An instance of this view is dynamically created by the D2SV runtime and this instance manages and renders DOM elements to represent the list of all available relations. It also handles user interaction with the DOM elements.
src/main/smartview/src/widgets/relations.widget.perspective/relations.widget.perspective.view.js - A MarionetteJS view implementation that displays the members of a selected group. An instance of this view is dynamically created by D2SV runtime to show list of relations in the perspective. The instance automatically updates itself as a result of end users selecting a relation by means of constant watch over the relation model instance acquired using relations.widget.collection.factory.js.
src/main/smartview/src/utils/contexts/factories/relations.widget.collection.factory.js - A factory to control creation of initialized/uninitialized relation collection instances.
src/main/smartview/src/customrelationswidget-extensions.json - A portion of this file registers extensions to enable the custom shortcut tile for the widget configuration and also to have custom shortcut tile behavior.

  "d2/sdk/controls/icon.sprites/node.icon.sprites": {
    "extensions": {
      "customrelationswidget": [
        "customrelationswidget/utils/icons"
      ]
    }
  },
  "d2/sdk/controls/table/cells/cell.factory": {
    "extensions": {
      "customrelationswidget": [
        "customrelationswidget/extensions/controls.table.cell.factory"
      ]
    }
  },
  "d2/sdk/utils/landingpage/tiles": {
    "extensions": {
      "customrelationswidget": [
        "customrelationswidget/extensions/relations.tiles"
      ]
    }
  },
  "d2/sdk/utils/perspectives/app.scope.perspectives": {
    "extensions": {
      "customrelationswidget": [
        "customrelationswidget/extensions/relations.perspectives"
      ]
    }
  }

src/main/smartview/src/models/relations.widget.collection.js - A BackboneJS collection that holds all available relation data. Uses relations.widget.model.js to represent each relation in the collection. Makes an AJAX call to one of the REST endpoint, created by Java code from above, to get the available relation.
src/main/smartview/src/models/relations.widget.model.js - A BackboneJS model that holds data for a single relation.
src/main/smartview/src/utils/contexts/factories/relations.widget.collection.factory.js - A factory to control creation of initialized/uninitialized relation collection instances.
src/main/smartview/src/utils/constants.js - A portion of the file defines a few frequently used constant values in the context of landing tile implementation.

The perspective, landing tile expands into

The perspective is defined in a two panel layout where it re-uses the same relation.widget.view.js from landing page tile. Apart from the RequireJS modules and other source code resources referred by the landing page tile, here's the other files involved in defining the perspective itself.

src/main/smartview/src/extensions/relation.perspectives.js - Declares an application scope handler and associates a perspective definition file with it.
src/main/smartview/src/utils/perspectives/relations.widget.perspective.json - Defines the layout for the perspective and associates relations.widget.perspective as the widgets to go. The D2SV runtime dynamically creates the associated view instances when the perspective comes alive.
src/main/smartview/src/widgets/relations.widget.perspective/relations.widget.perspective.view.js - A MarionetteJS view implementation that displays the members of a selected group. An instance of this view is dynamically created by D2SV runtime to show list of relations in the perspective. The instance automatically updates itself as a result of end users selecting a relation by means of constant watch over the relation model instance acquired using relations.widget.collection.factory.js.
src/main/smartview/src/utils/contexts/factories/relations.widget.collection.factory.js - A factory to control creation of initialized/uninitialized relation collection instances.

src/main/resources/strings/config/WidgetSubtypelist.properties - Defines the relation widget type

CustomRelationsWidget = true

src/main/resources/strings/config/WidgetSubtype.properties - Defines the relation widget type parameter for the relation widget types mentioned which are supported. Here the default value for the parameter can also be provided which can be changed in the D2 Config widget configuration

CustomRelationsWidget.param1 = Sample value

src/main/resources/strings/actions/config/modules/widget/WidgetDialog/WidgetDialog_en.properties - This properties file will contain the labels used for parameters for the custom type

label_param1 = Relation Widget param

src/main/resources/strings/config/WidgetColumnslist.properties - Defines the column type associated with the relation widget type.

CustomRelationsWidget = relations_widgets

src/main/resources/com/emc/d2/api/preferences/D2cPreferences.properties - Defines the default column configuration for widget. Each entry follows the format _col_{colType} and specifies a list of column definitions(e.g., attribute|100), where 100 represents the column size.

_col_relations_widgets = relation_name|100,description|100,parent_location|200,child_location|200

For the pre-deployed plugin, if you'd like to adjust the default columns for the CustomRelationWidget type using the plugin, it is mandatory to create a new entry with the key _default_plugin_{colType} to preserve the original column configuration. Then, update the _col_{colType} entry with your new column configuration. Please clear the preference after re-deploying the plugin to see the effect of changed plugin's default columns.

_col_relations_widgets = relation_name|100,description|100

_default_plugin_relations_widgets = relation_name|100,description|100,parent_location|200,child_location|200

src/main/resources/com/emc/d2/api/preferences/D2cPreferencesColumnType.properties - Maps each column (using the colType prefix) to its corresponding attribute type that the column represents.

relations_widgets.relation_name = 2
relations_widgets.description = 2
relations_widgets.parent_location = 2
relations_widgets.child_location = 2

where:
- BOOLEAN type is represented with 0
- INTEGER type is represented with 1
- STRING type is represented with 2
- ID type is represented with 3
- TIME type is represented with 4
- DOUBLE type is represented with 5
src/main/resources/strings/bundles/DfAttributeBundle_en.properties - Maps the display label for each column. Entries follow the format: type.columnName = Display Label

dm_sysobject.description = Description
dm_sysobject.parent_location = Parent Location
dm_sysobject.child_location = Child Location

where dm_sysobject is the object type to which the attribute(column) belongs.

D2SV Relation Widget

Instruction to try out the sample

Source code structure

Files and their purpose

REST Controller

Tile on the landing page

The perspective, landing tile expands into

Relation Widget references needed for the D2-Config widget configuration and D2 Smartview landing page configuration

To enable default columns in D2-Config widget configuration view for the relation widget type

D2SV Relation Widget

Instruction to try out the sample​

Source code structure​

Files and their purpose​

REST Controller​

Tile on the landing page​

The perspective, landing tile expands into​

Relation Widget references needed for the D2-Config widget configuration and D2 Smartview landing page configuration​

To enable default columns in D2-Config widget configuration view for the relation widget type​

Instruction to try out the sample

Source code structure

Files and their purpose

REST Controller

Tile on the landing page

The perspective, landing tile expands into

Relation Widget references needed for the D2-Config widget configuration and D2 Smartview landing page configuration

To enable default columns in D2-Config widget configuration view for the relation widget type
