STL Bullets & Numbering

This document describes a proposal for bullets & numbering definition in STL markup.

A primary design goal is to provide users with declarative and relatively friendly way to define bullets & numbering in STL definition markup which would be relatively easily convertible to StoryTeller Document (in DocBuilder++ component), but also directly convertible to HTML (via the STL2HTML component).

As there are notable differences between StoryTeller implementation and HTML implementation of bullets & numbering it soon became clear that meating the goals stated above would not be easy. While we originally tried to find a standard CSS definition we unfortunately quickly realized that such approach would make it very hard to convert to StoryTeller definition. Similarly a StoryTeller-like definition would be nearly impossible to convert to HTML/CSS. After some initial experiments we decided to look for a middle ground - try to define a markup which is proprietary, but relatively easily convertible to both destination formats.

Implementation

For advanced (multi-level) numbering there is always a set of integer counters representing a current state of the numbering hierarchy.

StoryTeller

In Storyteller we represent the state as a vector of integers and call it NumberingRegistry. It is then possible to define a numbering mask - a string specifying how a current NumberingRegistry transforms to a presentation string.

For example if we use a formatting mask "%0!R.%1!1 %2!a) " then formatter converts a NumberingRegistry equal to [4, 1, 2] to the "IV.1 b) " presentation string.

HTML

While there is also a possibility to represent multi-dimensional counters in HTML/CSS (see this example), unfortunately counter dimensions are tightly connected to hierarchy of corresponding HTML elements (e. g. <ol> or <li>) and also it’s formatting is limited compared to StoryTeller:

So to avoid these limitations we decided to transform a single vector counter definition to several corresponding scalar counters.

For example when user defines a single vector counter called counter then the STL2HTML component converts it to a set of corresponding counters:

and this way we can convert a sophisticated mask like "%0!R.%1!1 %2!a) " to the following corresponding CSS content definition:

counter(counter-0,upper-roman) "." counter(counter-1) " " counter(counter-2,lower-alpha) ") "

Markup

Whenever a user wants to present a numbering, he has to define a vendor prefixed set of CSS properties -stl-list-.... The properties associate the correponding element with a numbering counter and also define a format mask specifying how the counter should be formatted to dynamic marker content.

Optionally it is also possible to modify formatting style of the numbering marker, if user wants it different from the current character style. That can be done through a special ::marker pseudo-element in the CSS stylesheet. This approach is inspired by the experimental CSS marker technology.

There are basically two numbering scenarios which differ in a way how document markup maps to a numbering counter:

Explicit hierarchy

In this scenario a numbering counter directly maps to a corresponding markup hierarchy of XML (or HTML) elements.

Markup

It means that we need to map a multi-level counter to a multi-level list, like:

      <stl:list>
        <stl:p class="item">Category</stl:p>
        <stl:list>
          <stl:p class="item">Item</stl:p>
          <stl:p class="item">Item</stl:p>
          <stl:list>
            <stl:p class="item">Subitem</stl:p>
            <stl:p class="item">Subitem</stl:p>
          </stl:list>
        </stl:list>
      </stl:list>

In HTML it roughly corresponds to this example.

It is visible that in STL the multi-level list structure is formed by a hierarchy of stl:list elements. In DocBuilder++ each nested stl:list elements automatically increments the internal list-level variable. It means that there is no need to specify -stl-list-level property explicitly, it is implicitly defined by the nesting depth inside the hierarchy (however it can be explicitly overriden, if user needs to alter the default behavior). Also the current padding-left property is incremented by 1em value in order to make /DocBuilder++/ behavior similar to HTML.

Style

In order to associate such hierarchy of <stl:p> elements we can define a CSS class (e.g. item) with a specified -stl-list property as follows (we can optionally add a ::marker pseudo-element and change the style of the dynamically generated marker content):

    .item {
      -stl-list-counter: counter;
      -stl-list-mask: "%0!R. " "%0!R.%1!1 " "%0!R.%1!1 %2!a) ";
    }
    .item::marker {
      color: red;
    }

The -stl-list definitions have the following meaning:

As most of the numbering masks are cummulative (each level contains also all the previous levels) we introduce a shorthand form of the mask. Instead of the following mask sequence:

-stl-list-mask: "%0!R. " "%0!R.%1!1 " "%0!R.%1!1 %2!a) ";

… user can use the following shorthand notation:

-stl-list-mask: "{%0!R.}{%1!1}{ %2!a)} ";

The idea is that the mask definition gets preprocessed for each numbering level and each part of the mask enclosed in curly braces disappears if it’s index is higher than current numbering level.

It means that the "{%0!R.}{%1!1}{ %2!a)} " definition generates:

Users can use backslash character for escaping in case they want to use curly braces inside a mask formatting string (e.g. "{%0!R.}{%1!1}{ \{%2!a\}} ").

Example

We believe that with some changes in Document platform it will be possible to convert such definition to StoryTeller document definition (it will also mean a significant effort in DocBuilder++ implementation, CSS parser framework and DocWriter component).

At the same time we believe that it is possible to reasonably and directly convert the definition to corresponding HTML/CSS definition which behaves according to definition.

The idea is that the following STL markup:

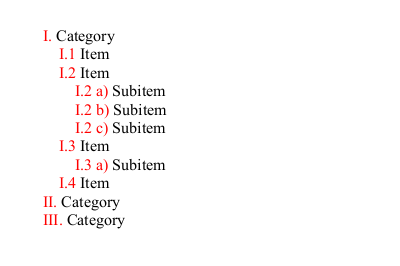

… will be formatted by StoryTeller formatter as follows:

Explicit hierarchy

… and converted to the corresponding HTML markup by the STL2HTML component:

Implicit hierarchy

In this scenario a numbering counter maps to an implicit hierarchy of XML (or HTML) elements. By implicit we mean some kind of rather semantic (as opposed to syntactic) rules, like a “hierarchy” of <h1>, <h2>, <h3>, … elements in HTML.

Markup

In STL such hierarchy can be formed for example as follows:

      <stl:p class="h1">Chapter</stl:p>
      <stl:p class="h2">Section</stl:p>
      <stl:p class="h2">Section</stl:p>
      <stl:p class="h3">Subsection</stl:p>
      <stl:p class="h3">Subsection</stl:p>
      <stl:p class="h1">Chapter</stl:p>
      <stl:p class="h2">Section</stl:p>

In HTML it roughly corresponds to this example.

Style

In order to associate such hierarchy of <stl:p> elements we can define a set of CSS classes (e.g. h1, h2, h3, …) and specify corresponding -stl-list-... properties as follows (we can optionally define ::marker pseudo-element selectors and change style of dynamically generated marker content):

    .h1 {
      -stl-list-counter: counter;
      -stl-list-level: 0;
      -stl-list-mask: "%0!R. ";
    }
    .h2 {
      -stl-list-counter: counter;
      -stl-list-level: 1;
      -stl-list-mask: "%0!R.%1!1 ";
    }
    .h3 {
      -stl-list-counter: counter;
      -stl-list-level: 2;
      -stl-list-mask: "%0!R.%1!1 %2!a) ";
    }
    .h1::marker, .h2::marker, .h3::marker {
      color: red;
    }

This form of -stl-list-... definitions associate just with a particular level of a multi-dimensional counter and so have the following meaning:

(compare it with the “multi-level” form of the same property described in the previous section).

Basic Example

Again we believe that it is possible to reasonably and directly convert the STL definition to corresponding HTML/CSS definition which behaves according to definition.

It means that the following STL markup:

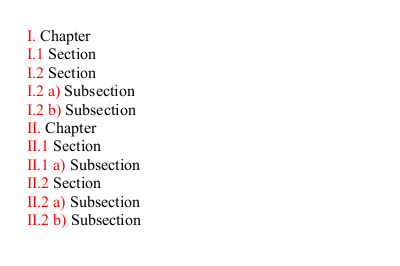

… will be formatted by StoryTeller formatter as follows:

Explicit hierarchy

… and converted to the corresponding HTML markup by the STL2HTML component:

Fragments example

There is a frequent use case when users create many fragments and want to share a single numbering sequence throughout the whole story (across all the fragments’ content).

It can be solved in a user friendly manner if we share a single CSS definition of an implicit numbering hierarchy among all the fragments. We can even generate fragments dynamically based on input data and still follow a single numbering sequence.

In the following example we define a single CSS stylesheet (link:/stylesheet.css):

    .section, .chapter, .body {
      font-family: Arial;
      margin-top: 4pt;
    }
    .section {
      font-size: 14pt;
      font-weight: bold;
      -stl-list-counter: counter;
      -stl-list-level: 0;
      -stl-list-mask: "%0!R. ";
    }
    .chapter {
      font-weight: bold;
      -stl-list-counter: counter;
      -stl-list-level: 1;
      -stl-list-mask: "%0!R.%1!1 ";
    }
    .section::marker, .chapter::marker {
      color: red;
    }

… and define a single fragment template (link:/template.xml):


    <stl:stl xmlns:stl="http://developer.opentext.com/schemas/storyteller/layout" version="0.1">
      <stl:style src="link:/stylesheet.css"/>
      <stl:document>
        <stl:story>
          <stl:p class="section">{{id}}</stl:p>
          {{chapter}}
          <stl:p class="chapter">{{name}}</stl:p>
          {{paragraph}}
          <stl:p class="body">{{.}}</stl:p>
          {{/paragraph}}
          {{/chapter}}
        </stl:story>
      </stl:document>
    </stl:stl>

We have the following sample data:

      <book>
        <section id="Introduction to Biology">
          <chapter name="Getting Started">
            <paragraph>First paragraph</paragraph>
            <paragraph>Second paragraph</paragraph>
          </chapter>
          <chapter name="Introduction">
            <paragraph>Single paragraph</paragraph>
          </chapter>
          ...
        </section>
        <section id="More advanced stuff">
          ...
        </section>
      </book>

… and use the following script to convert each section to an STL fragment:

    var item = require('layout').item();
    var repo = require('repo');
    var data = require( 'data' );
    var Mark = require('markup-js');
    var section = data.js('.').section;
    var template = repo.load("link:/template.xml");
    var stl = Mark.up(template, section);
    item.Uri = repo.upload(stl);

Here is the full STL definition:

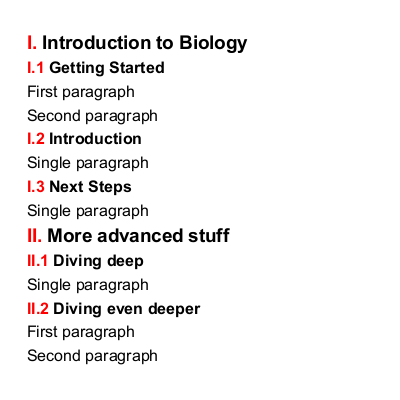

Which gets converted to following document:

Dynamic fragments

As you can see, all the generated fragments share single numbering sequence as desired.

Bullets

Bullets are specified in a very similar way, except in this case we do not need a counter associated.

Style

So there is no -stl-list-counter specified:

    .item {
      -stl-list-mask: "♥ " "♠ " "♦ " "♣ ";
    }

… of for implicit hierarchy:

    .h1 {
      -stl-list-level: 0;
      -stl-list-mask: "♥ ";
    }
    .h2 {
      -stl-list-level: 1;
      -stl-list-mask: "♠ ";
    }
    ...

For more convenience we could also add a support for default bullet sequence, which could be utilized as follows:

    .item {
      -stl-list-mask: default;
    }

… and correspondingly:

    .h1 {
      -stl-list-level: 0;
      -stl-list-mask: default;
    }
    .h2 {
      -stl-list-level: 1;
      -stl-list-mask: default;
    }
    ...

… or even more simplified version:

    .h1 {
      -stl-list-level: 0;
    }
    .h2 {
      -stl-list-level: 1;
    }
    ...

Example

It means that the following STL markup:

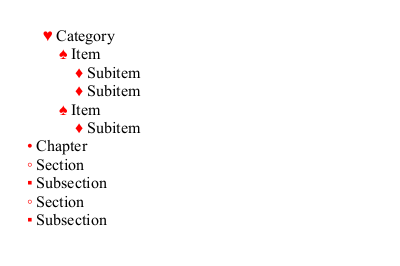

… will be formatted by StoryTeller formatter as follows:

Explicit hierarchy

… and converted to the corresponding HTML markup by the STL2HTML component:

Conclusion

As it is relatively difficult to get two distinct numbering implementations “under one roof” we had a hard time to reach an acceptable solution.

While the proposed approach has some disadvantages:

… we are relatively happy with this proposal, as it has many nice properties:
